ArcProgressView¶
Add: Version 0.2.0
Quick start¶
Add: Version 0.2.0
<com.ave.vastgui.tools.view.progress.ArcProgressView
android:layout_width="wrap_content"
android:layout_height="wrap_content"/>
Progress width¶
Add: Version 0.2.0 Update: Version 1.5.2
Width of pogress can be set by arc_progress_width or calling progressWidth .
binding.arcProgressView.progressWidth = 10f.DP
<com.ave.vastgui.tools.view.progress.ArcProgressView
...
app:arc_progress_width="10dp" />

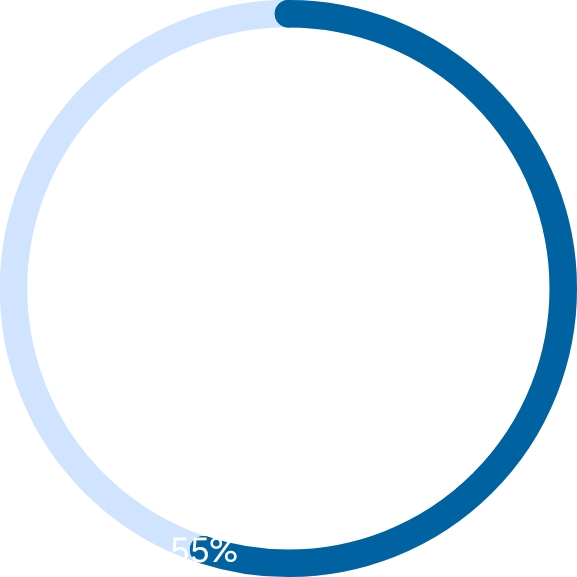

| 20dp | 10dp |
|---|---|
 |
 |
Color of startpoint and endpoint circle¶
Add: Version 0.5.4 Update: Version 1.5.2

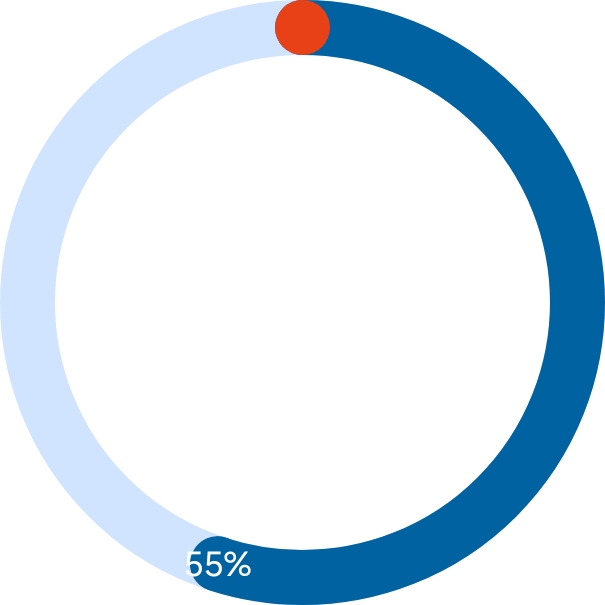

Color of startpoint circle can be set by arc_progress_startpoint_circle_color or calling startpointCircleColor .

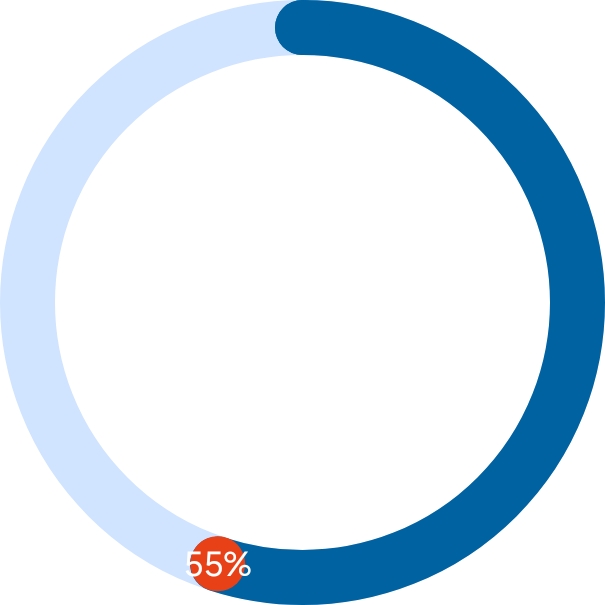

Color of endpoint circle can be set by arc_progress_endpoint_circle_color or calling endpointCircleColor .
binding.arcProgressView.startpointCircleColor =
ColorUtils.colorHex2Int("#e84118")
binding.arcProgressView.endpointCircleColor =
ColorUtils.colorHex2Int("#e84118")
<com.ave.vastgui.tools.view.progress.ArcProgressView
...
app:arc_progress_startpoint_circle_color="#e84118"
app:arc_progress_endpoint_circle_color="#e84118" />

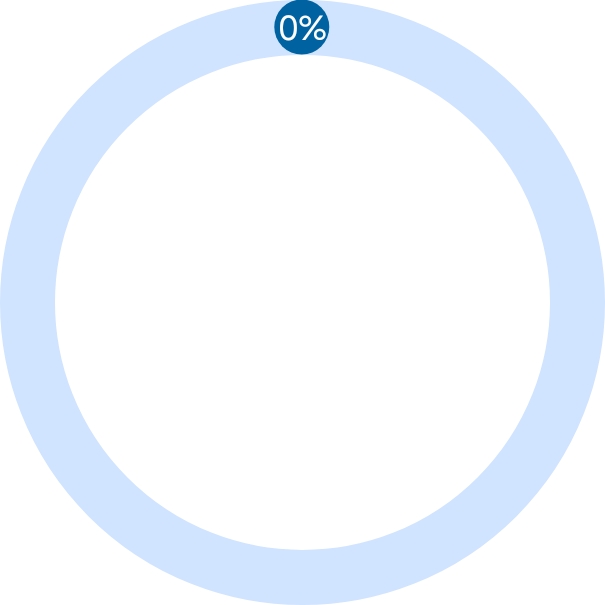

| Progress 0 | Progress 55 | Startpoint circle | Endpoint circle |
|---|---|---|---|
 |
|
 |
 |

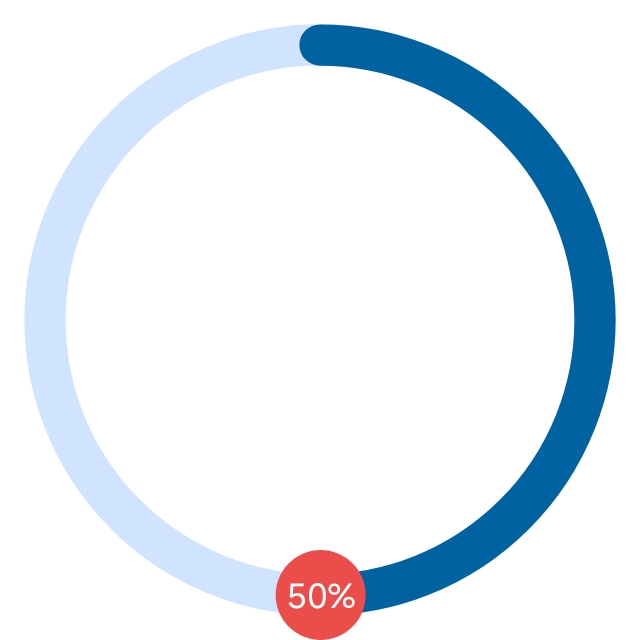

Radius of endpoint circle¶
Add: Version 0.5.5 Update: Version 1.5.2
Radius of endpoint circle can be set by arc_progress_endpoint_circle_radius or calling endpointCircleRadius .
binding.arcProgressView.endpointCircleRadius =
15f.DP.coerceAtLeast(recommendedRadius())
<com.ave.vastgui.tools.view.progress.ArcProgressView
...
app:arc_progress_endpoint_circle_radius="20dp" />

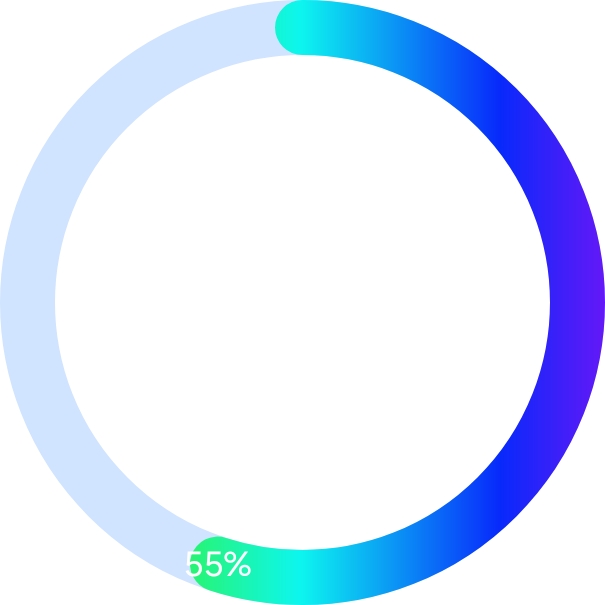

Shader¶
Add: Version 0.5.5 Update: Version 1.5.2
Shader of progress can be set by calling progressShader .
val colors = intArrayOf(
... // Color-int
)
val pos = floatArrayOf(
... // The relative positions [0..1] of each corresponding color in the colors array.
)
binding.arcProgressView.progressShader = LinearGradient(
-700f, 0f, 700f, 0f,
colors, pos,
Shader.TileMode.CLAMP
)
